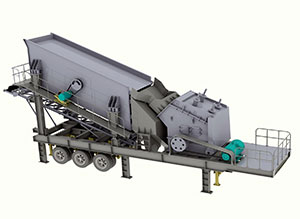

Moblie impact crusher station

Mobile impact crusher can process medium hard stones, and final products can be used in road, bridge, construction and water conservancy, etc. Industries. As one process of crushing work......
Scope of application:
primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
Share With:
Product Details
technical parameter
Product Description:
Mobile impact crusher can process medium hard stones, and final products can be used in road, bridge, construction and water conservancy, etc. Industries. As one process of crushing work, mobile impact crusher can meet different requirements about capacity and output size by changing models.

Applications: primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.
features:
Move easily. It can go to the crushing place directly. It can move not only on the smooth road, but also on the bumpy road.
Compact structure and simple operation. Integrative equipment group with trailer save the working area.
With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.
Save the cost. By crushing the materials on site, the transportation cost is reduced.
Table parameters :
Model HJ938F1210 HJ938F1214 HJ1149F1315 HJ938F1110 HJ1349F1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
