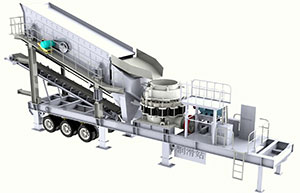

Moblie Cone crusher station

The mobile cone crushers are designed for mobile secondary and tertiary crushing，can be used to meet the diversified high-quality, high-volume production requirements of customers.

Scope of application:

Chat Now leave a message

Get A Quotation Download PDF

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

The mobile cone crushers are designed for mobile secondary and tertiary crushing，can be used to meet the diversified high-quality, high-volume production requirements of customers. It can be used to crush more than 200 kinds of materials, such as granite, quartz, limestone, concrete, gold ore, iron ore, coal, construction waste and so on.

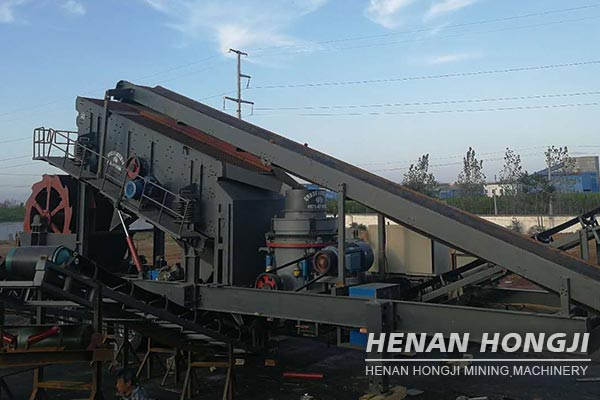

The mobile cone crushers have a wide range of applications, such as mining ore crushing, construction waste recycling, building aggregate production, urban infrastructure, railways, road and bridge construction and other industries.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature

● 1. Move easily. It can go to the crushing place directly. It can move not only on the smooth road,but also on the bumpy road.

● 2. Compact structure and simple operation. Integrative equipment group with trailer save the working area.

● 3. With generator, motor and control box on the trailer, it can work outdoor easily. Equipped with supporting facilities, it can be installed quickly and conveniently.

● 4. Save the cost. By crushing the materials on site, the transportation cost is reduced.

Table Parameters

Model	HJ3S185GYS300	HJ3S216GYS400	HJ3S216HP300
Transportation Length （mm）	14500	15000	16000
Transportation Width （mm）	3000	3000	4550
Transportation Height （mm）	4400	4500	17000
Maximum Length （mm）	17000	16000	4600
Maximum Width （mm）	3400	3900	6900
Maximum Height （mm）	5800	6500	4700
Weight （t）	34.5	49.5	41
Tyre Configuration	biax fitted	triaxial fitted	triaxial fitted
Tire Configuration	GYS300	GYS400	HP300
Feeding Belt Conveyor	B650×15M×2	B800×15M×2	B800×15M×2
Discharging Belt Conveyor	B650×14M	B800×14M	B800×16M
Conveyor Belt for final products	B500×15M	B800×6M	B650×15M×2
Under vibrating screen	B800×7M	B800×8M	B800×9M
Vibrating Screen Model	3yk1854	3Yk2160	3Yk2160
