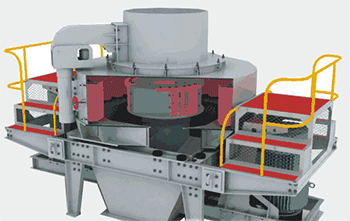

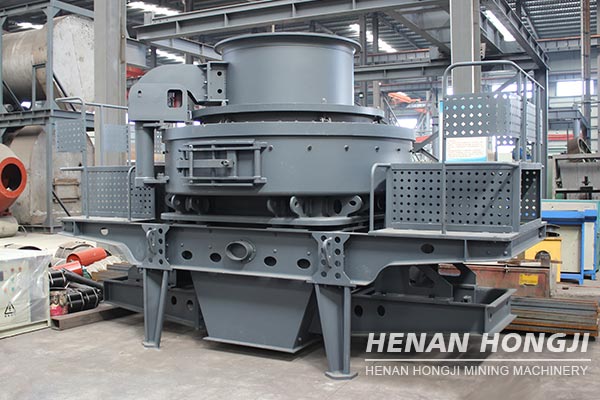

Vertical shaft impact (VSI) crusher

Hongji Vertical Shaft Impact (VSI) crusher has had a huge impact on the global quarrying and minerals processing industries, and has been suitable for a wide range of applications including the production of high-quality manufactured sand, premium ......

Scope of application:
Manufactured sand, premium shaped aggregates, concrete and road products, recycling industry, industrial minerals industry, mining industry.

Chat Now leave a message

Get A Quotation Download PDF

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

Vertical Shaft Impact (VSI) crusher is unique due to its crushing process, which uses the rock fed into the machine to crush itself. This autogenous crushing process produces the best-shaped aggregate on the market today.
The high velocity impact crushing achieved in Vertical Shaft Impact (VSI) crusher improves the soundness and shape of stone, reducing product moisture and easing the screening task while producing superior products at a minimum cost.

Feature

● 1. Reduced power consumption.

● 2. Reduced out-of-balance forces, resulting in longer bearing life (motors and crusher).

● 3. Ability to control product grading, maximizing or minimizing fines production.

● 4. Range of models available to suit any capacity in tertiary or quaternary applications.

● 5. Quick and easy installation. Crushers require minimum support structure and are also ideal as mobile units.

● 6. Integrated monitoring, safety and control systems.

Table Parameters

Model	Capacity (t/h)	Max Feed Size (mm)	Rotation speed (r/min)	Power for double motor (kW)	Overall Dimension L×W×H (mm)	Weight (t)
VSI7611	120-180	<35	1700-1890	2×55 (75)	4100×2250×2285	10
VSI8518	200-260	<40	1520-1690	2×90 (125)	4140×2280×2425	12.5
VSI9526	300-380	<45	1360-1510	2×132 (175)	4560×2450×2780	14.5
VSI1140	450-520	<50	1180-1310	2×200 (270)	5100×2690×3200	19
