Hydraulic Cone Crusher

Hongji HP cone crushers are an excellent choice as secondary crushers in combination with a jaw or a primary gyratory crusher or in the third or fourth crushing stage. Thanks to their built-in versatility and automatic control system, these crushers .....

Scope of application:
Aggregate field, concrete mixing plant, dry mortar plant desulfurization, quartz sand, etc. Mobile cone crusher available

Chat Now leave a message

Get A Quotation Download PDF

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

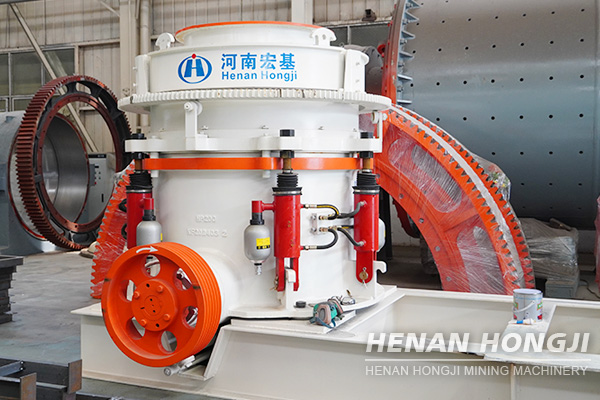

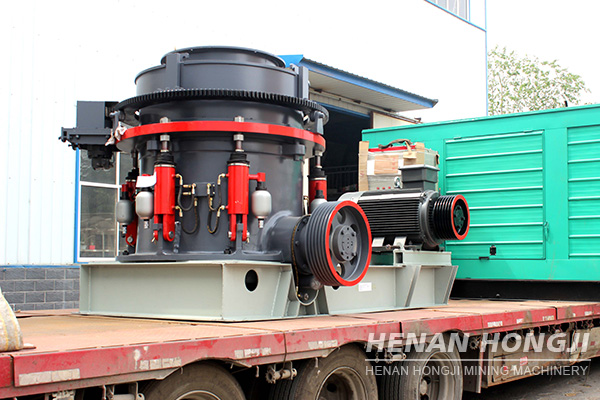

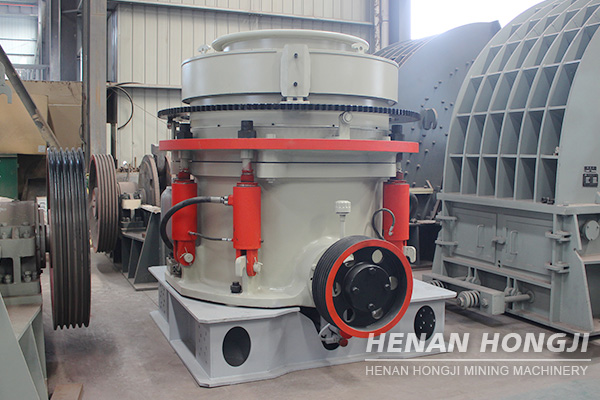

The HP cone crusher is a compressive crusher in which feed material is crushed between afixed bowl liner and a moveable mantle, which is particularly suitable for crushing of products ranging from medium-hard to hard as well as brittle and tough feed materials.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.

Feature

● 1. Long life from liners of special alloy manganese steel.

● 2. The interior of the crusher is protected from dust by a self-lubricating seal ring.

● 3. Quiet operation and long life thanks to bevel gears with hardened, spiral-cut teeth.

● 4. Product curve and capacity can be optimized by adjusting the eccentric bushing supplied with the crusher.

● 5. High reduction ratio in the secondary crushing stage.

● 6. Final grain with high cubic grain proportion.

Table Parameters

Model	Head diameter	Feed opening	Power
HP3	1000 mm (39")	220 mm (8 3/4")	250 kW (350 hp)
HP4	1120 mm (44")	252 mm (9 7/8")	315 kW (400 hp)
HP5	1250 mm (49")	317 mm (12 1/2")	370 kW (500 hp)
HP6	1400 mm (55")	331 mm (13")	500 kW (650 hp)
HP100	735 mm (29")	150 mm (6")	90 kW (125 hp)
HP200	940 mm (37")	185 mm (7")	132 kW (200 hp)
HP300	1120 mm (44")	241 mm (9 1/2")	220 kW (300 hp)
HP400	1320 mm (52")	304 mm (12")	315 kW (400 hp)
HP500	1520 mm (60")	351 mm (13 3/4")	355 kW (500 hp)
