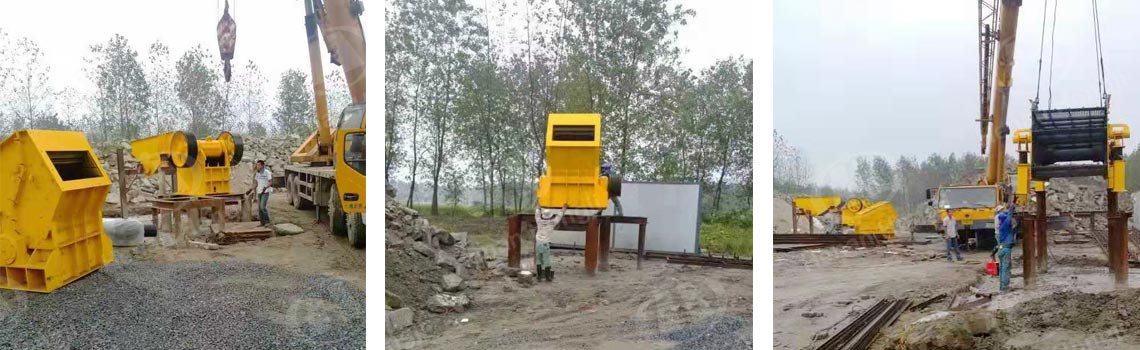

Thailand 30-50TPH Stone crushing plant started running in March, 2014. It’s mainly used for raw material less 300mm crushing to less than 20mm. After customer came to Hongji for inspection equipment and producing factory, discussed with Hongji’s engineer, then finally chose the jaw crusher, impact crusher, vibrating screen etc. the full crushing plant from Hongji.
Material: Granite
Input size: less than 300mm
Output size: less than 20mm
Capacity: 30-50tph
Equipment: 600x1200 Vibrating feeder, PE400x600 Jaw crusher, PF1008 impact crusher,3YK1235 Vibrating screen
Project location: Thailand
Process Description:
The main process including: material goes to jaw crusher through vibrating feeder, as the first stage crushing, then goes to impact crusher by belt conveyor for secondary crushing. Crushed materials go to vibrating screen to separate the qualified materials. Those bigger than required will go back to impact crusher for crushing again.
Feedback:
The project is successful, high capacity, and still running very well without any fault. It’s easy for operation and maintenance. The wearing parts are good too. This is the very high cost effective product. We are satisfied with Hongji Product and service.
Service support:
- 48-hour idling test machine before leaving the factory.
- You can take the materials to the factory test machine.
- We will customize the solution according to your needs.
