Lime rotary kiln

As a kind of rotary kiln, the lime kiln, also called active lime rotary kiln, is the main equipment used to calcine active lime, consisting of the drum body, support device, support device with hydraulic retaining wheel......
Scope of application:
Limestone, cement clinker, bauxite, activated lime, aluminum hydroxide, etc.
Share With:
Product Description

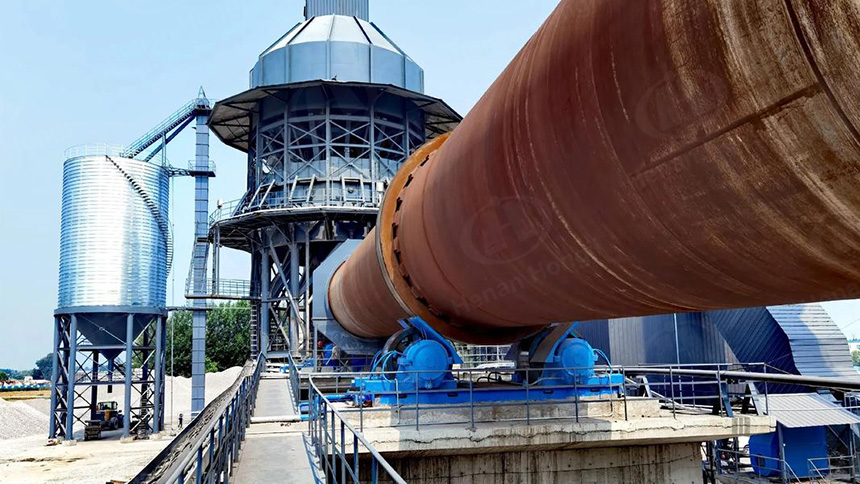

As a kind of rotary kiln, the lime kiln, also called active lime rotary kiln, is the main equipment used to calcine active lime, consisting of the drum body, support device, support device with hydraulic retaining wheel, transmission device, lubrication device, sealing device for kiln tail. It is of simple structure, reliable operation, and convenience in the automation control.

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.
Feature
●     1. Good calcination, high product quality;
●     2. High capacity;
●     3. Simple structure, reliable performance;
●     4. Easy operation.

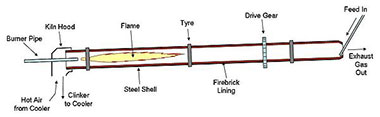

 yuanli
Table Parameters
Designed capacity (T/D) 200 300 400 600 800 1000
Product active lime active lime active lime active lime active lime active lime
Preheater specifications RS-6.5×3.4 RS-7.5×3.4 RS-8.5×3.4 RS-10.×3.4 RS-10.8×3.4 RS-13.5×3.4
Number of push rod 6 8 10 12 16 18
Kiln specifications φ2.8×42M φ3.3×50M φ3.6×56M φ4×60M φ4.3×66M φ4.8×68M
Effective volume (m³) 190 292 430 575 738 1005
speed (r/min) 0.45-2.22 0.2-1.9 0.22-1.57 0.48-1.57 0.21-1.57 0.19-1.98
Cooler specifications LS-3×3 LS-3.6×3.6 LS-3.8×3.8 LS-4.1×4.1 LS-4.7×4.7 LS-5.2×5.2
Feed temperature 1100±50℃ 1100±50℃ 1100±50℃ 1100±50℃ 1100±50℃ 1100±50℃
Discharge temperature <100℃ <100℃ <100℃ <100℃ <100℃ <100℃
Weight(T) 35   40 50
Heat rate (KJ/Kg) 5200 5200 5100 5000 5000 5000
Activity (50g,4NHCL,10MIN) ≥360ML ≥360ML ≥360ML ≥360ML ≥360ML ≥360ML
Service Support


- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
yuanli
