Cement ball mill

The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. Cement grinding is one of the important cement equipment.
Scope of application:
cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.
Share With:
Product Description
The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. Cement grinding is one of the important cement equipment. It plays a vital role in the cement production line and cement production process. Cement mills are mainly used in cement, silicate products, new building materials, refractory materials, glass ceramics and other production industries.

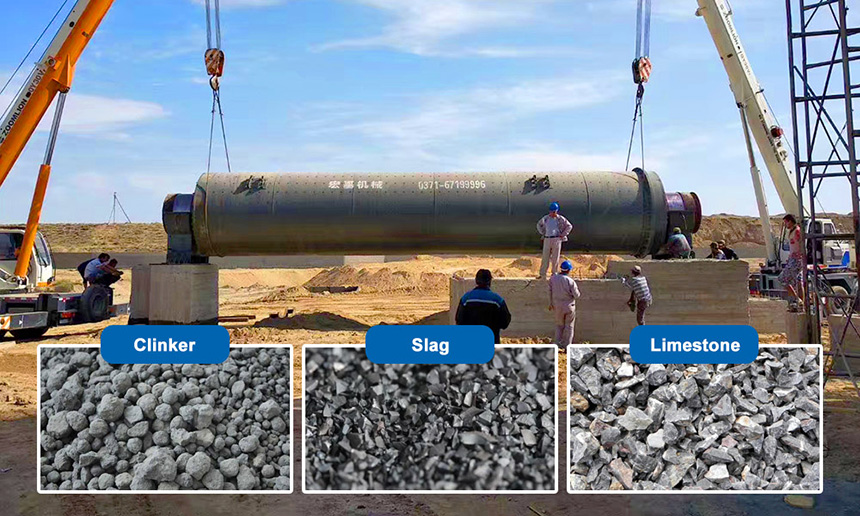

Applied material : Rock, gravel, different kinds of ore, fireclay, slag and other hard materials.
Feature
●     1. High grinding ratio.
●     2. Large production capacity.
●     3. Easy operation, stable& reliable performance.
●     4. Smaller built-up space in comparison with mills seated on trunnion bearings.
●     5. Wide applicability and Great yield.
●     6. Oil mist lubrication device guarantees the lubrication of all gears.
Table Parameters
Product specification (m) Speed reduction ratio Motor power (kw) Production capacity (t/h) Total weight (t)
Φ1.83×7 4.5 245 6.5-8 43.8
Φ2.2×7.5 5 380 8-10 64.8
Φ2.2×11 35.5 630 12-13 104.6
Φ2.2×13 35.5 630 16-18 114
Φ2.4×13 35.5 800 20-23 130.6
Φ2.6×13 19.5 1000 28-32 158
Φ3×9 41.2 1000 28-36.5 167
Φ3×11 42.8 1250 36-47 180
Φ3.2×13 36.5 1600 45-50 225
Φ3.5×13 5.84 2000 60-65 275
Φ3.8×13 16.5 2500 60-62 320
Φ4.2×13 15.6 3530 85-87 380
Φ4.6×14 14.6 4200 120-135 485

Service Support




- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
