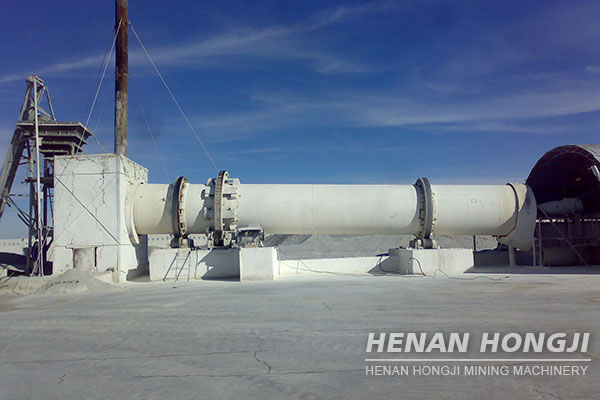

Rotary dryer

The rotary dryer is mainly composed of a frame, a heat supply source, a loading machine, a feeding machine, a rotary drum, a material crushing device, a discharging machine, an induced draft fan, a discharger and a power distribution cabinet.

Scope of application:

Chat Now leave a message

Get A Quotation Download PDF

Share With:

Product Description

Feature Table Parameters Service Support

Product Description

Rotary dryers are a highly efficient industrial drying option for bulk solids. They are often chosen for their robust processing capabilities and their ability to produce uniform results despite variance in feedstock.

Rotary dryers work by tumbling material in a rotating drum in the presence of a drying air. They can also be indirectly heated to avoid direct contact between the material and processing medium.

Applied material : Rotary dryers are essential dryers for mineral processing. Hongji's rotary dryer can dry more than 200 kinds of materials, including slime, limestone, river sand, clay, iron oxide scale, sludge, coke, copper concentrate, silicon carbide powder, rare earth ore, mineral powder, tin ore powder, Cobalt ore powder, nickel ore powder, manganese ore powder, gypsum powder, bentonite, kaolin, gold ore powder, iron ore powder, steel slag, fluorite ore, coal, etc.

Feature

● 1. The moisture is controllable;

● 2. Multi-channel intelligent anti-ignition;

● 3. Reliable fire handling equipment;

● 4. Coal & power saving, various heat sources can be used;

● 5. Full automatic control;

● 6. Pollution-free emission.

Table Parameters

Spec./m (Dia.×Length）	Capacity （t/h）	Installation Obliquity （%）	Highest Inlet Air Temperature （℃）	Main Motor （kw)	Weight （t）
Φ1.2×8.0	1.9～2.4	3～5	700～800	7.5	9
Φ1.2×10	2.4～3.0	3～5	700～800	7.5	11
Φ1.5×12	4.5～5.7	3～5	700～800	15	18.5
Φ1.5×14	5.3～6.6	3～5	700～800	15	19.7
Φ1.5×15	5.7～7.1	3～5	700～800	15	20.5
Φ1.8×12	6.5～8.1	3～5	700～800	18.5	21.5
Φ1.8×14	7.6～9.5	3～5	700～800	18.5	23
Φ2.2×12	9.7～12.2	3～5	700～800	22	33.5
Φ2.2×14	11.4～14.2	3～5	700～800	22	36
Φ2.2×16	13.0～16.2	3～5	700～800	22	38
Φ2.4×14	13.5～16.9	3～5	700～800	37	45
Φ2.4×18	17.4～21.7	3～5	700～800	37	49
Φ2.4×20	19.3～24.1	3～5	700～800	45	54
Φ2.4×22	21.2～26.5	3～5	700～800	45	58
Φ2.6×24	27.2～34.0	3～5	700～800	55	73
Φ3.0×20	30.1～37.7	3～5	700～800	75	85
Φ3.0×25	37.7～47.1	3～5	700～800	75	95
Φ3.2×25	42.9～53.6	3～5	700～800	90	110
Φ3.6×28	60.8～76.0	3～5	700～800	160	130
