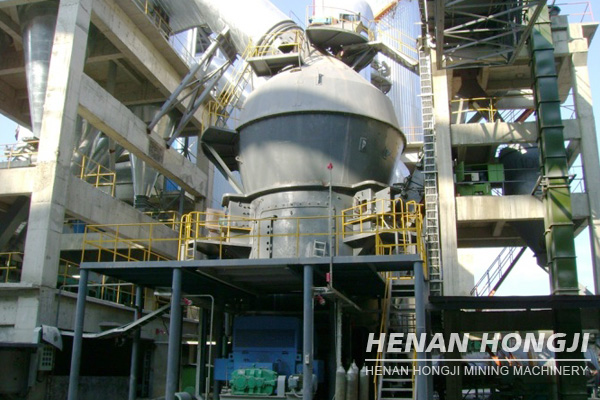

Vertical Mill

HJ Vertical mill is one kind of roller mill. As requested, it may equip with 3 or 4 rollers. Each roller is composed of fixed roller, support of installation rocker arm and hydraulic system.
Scope of application:
metallurgy, chemical, glass and other industries, in recent years, also used in the sand making industry for construction sand.
Share With:
Product Description
HJ Vertical mill is one kind of roller mill. As requested, it may equip with 3 or 4 rollers. Each roller is composed of fixed roller, support of installation rocker arm and hydraulic system. Motive force unit is in the whole or a standard part. It can be arranged in two components, three components or four components around mill disc.

Work Principle:
Raw material feed into discharge pipe through rotary discharger. Discharge pipe enter into the mill through the side or the center of the separator. Material will fall into the center of mill disc with the help of gravity and air flow. Mill disc connect with the reducer constantly. Constant speed rotation of mill disc will distribute material evenly in the lining plate of mill disc. There inclined mill roller will bite material and pulverize. Grind material with the function of pressure and friction.

Centrifugal force will make pulverized material at the edge of mill disc from the middle of mill disc. Material off mill disc will enter into hot gas in the mill through air ring. Via the middle of the mill shell and enter into the Sepratator.During the process, material will exchange hot gas.The moisture will be evaporated.The rest moisture can reach 1%. Unpulverized material as request will be selected by the Separator and send back mill disc.
Feature
●     1. low noise.
●     2. Low energy consumption.
●     3. Quick control response.
●     4. The vibration is small from start to stop.
●     5. Strong adaptability.
●     6. Small covering area.
●     7. Easy adjustment.
●     8. Excellent dry grinding capacity.
●     9. Easy maintenance (no need to dismantle and can replace easily worn-out parts).
Table Parameters
Model Grinding Table Diameter (mm) Motor (kW) Output (t/h)
RMS19 1900 560 15
RMS23 2300 710 20
RMS26 2600 1000 28
RMS30 3000 1400 40
RMS33 3300 1600 45
RMS36 3600 2000 60
RMS38 3800 2240 65
RMS40 4000 2500 75
RMS43 4300 3000 90
RMS46 4600 3150 95
RMS50 5000 4000 125
RMS53 5300 4500 145
RMS56 5600 5000 155
RMS60 6000 6300 180
RMS65 6500 7300 220
RMS70 7000 8500 260
Service Support


- 48-hour idling test machine before leaving the factory.

- You can take the materials to the factory test machine.

- We will customize the solution according to your needs.
