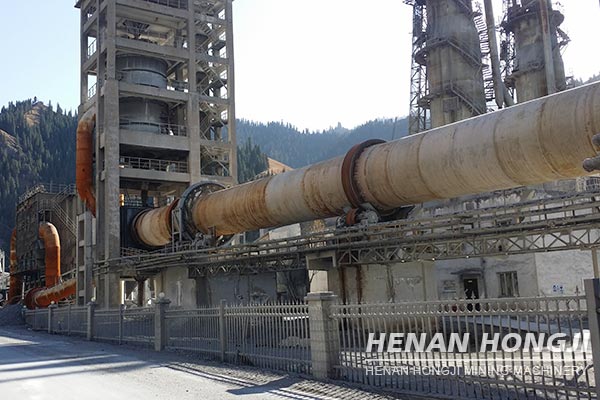

Lime Production Line

Scope of application:
Hongji can undertake the 200-1500t/d active lime production line EPC, including the reach report, civil engineering, designing, equipment, installation and debugging --- " turnkey” service with production capacity and standard achieved.
Share With:
Product Details
technical parameter
Product Description:
Hongji can undertake the 200-1500t/d active lime production line EPC, including the reach report, civil engineering, designing, equipment, installation and debugging --- " turnkey” service with production capacity and standard achieved.

Qualified limestone (20 ~ 50 mm) are lifted by bucket elevator to top silo of preheater. There are two level indicators (up and down) controlling the feeding amount, then they are separated averagely into preheaters’ individual rooms. The limestone’s temperature rises to about 900℃ heated by kiln flue gas of 1150℃, about 30% of them are decomposed, and they come into the rotary kiln by hydraulic rod, where the limestone decomposed into CaO and CO2. The decomposed limestone is put into the cooler, where its temperatures drops to 100℃ and released. The hot air (600°C) will come to kiln after heat exchange, and mix with coal gas for mixture combustion. The exhaust gas is released by the blower into bag deduster through multi-pipe cooler, then into the chimney though exhaust blower. The limestone from the cooler will be transported to the limestone final product silo through vibrating feeder, chain conveyer, bucket elevator, belt conveyer.

Active lime production line characteristics

1. Large production, maximum capacity can reach 1500t/d

2. Quality of final product is well-distributed, and over-sintering is no more than 8%.

3. Activity of lime can reach 400ml

Capacity :200-1200t/d
Kiln slope :3.5~4%
Diameter :φ1.8~φ4.8 m
Application :Lime production plant, cement plant, Hydrogen calcium plant

features:
Unique Jaw head structure
Unique Jaw head structure
Sealed guarantee
Extend bearing lift
DEEP Cavity brokedn
High Crushing Ratio
Even output granularity
High strength
The crusher has large capacity and high strength
High bearing capacity
The bearing pedestal adopts unitary cast steel
structure
Easy operation on outlet
More advanced movable jaw assembly
Makes it more durable
UNIQUE FLYWHEEL DESIGN
Effectively reducing vibration, the machine runs more smoothly
