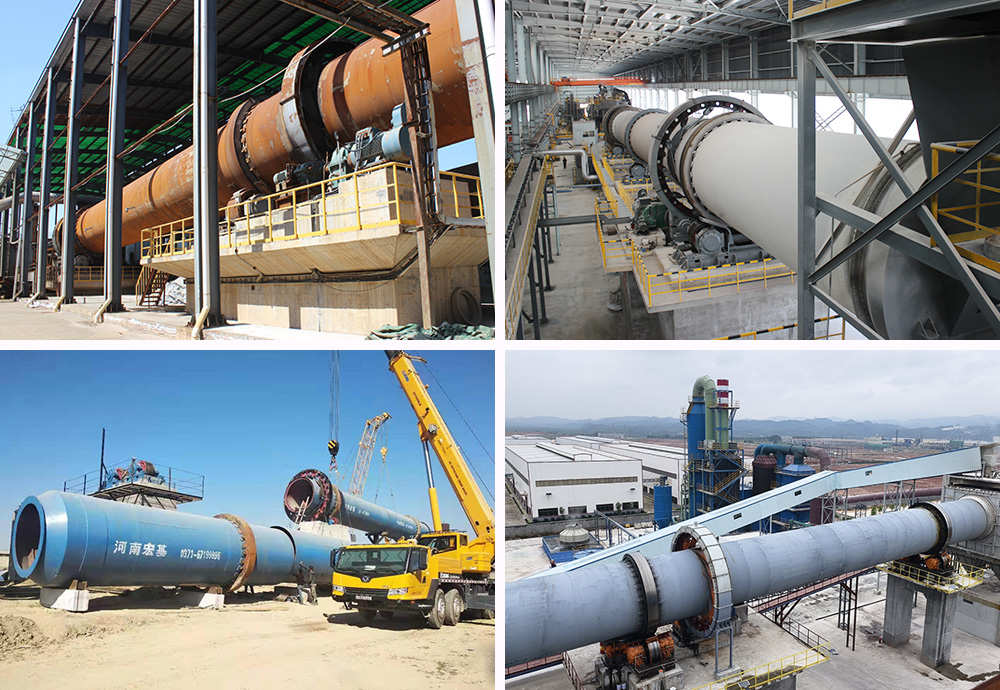

Rotary Kiln

Rotary Kiln belongs to building material equipment, according to different materials, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln.


Share With:
Product Details
technical parameter
Product Description:
Rotary Kiln belongs to building material equipment, according to different materials, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln. Cement kiln is used for making cement clinker and there are dry and wet methods to make cement clinker. Metallurgy chemical kiln is widely used for magnetic roasting of poor iron ore and oxidizing roasting of chrome and nickel in the steel factory; backing high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminum factory and baking chrome ore and chrome powder in the chemical plant. The Lime Kiln is used for roasting active lime in steel works and ferroalloy plants and light roasting dolomite, and ceramic proppant rotary kiln so on.
features:
Unique Jaw head structure
Unique Jaw head structure
Sealed guarantee
Extend bearing lift
DEEP Cavity brokedn
High Crushing Ratio
Even output granularity
High strength
The crusher has large capacity and high strength
High bearing capacity
The bearing pedestal adopts unitary cast steel
structure
Easy operation on outlet
More advanced movable jaw assembly
Makes it more durable
UNIQUE FLYWHEEL DESIGN
Effectively reducing vibration, the machine runs more smoothly
Table parameters :
Product Specification (m) Diameter (m) Length (m) Capacity (t/d) Rotation speed (r/min) Motor power (kw) Total weight (t)

Φ2.0×40

2 40 160 0.23-2.26 37 119

Φ2.2×45

2.2 45 180 0.21-2.44 45 128

Φ2.5×40

2.5 40 200 0.44-2.44 55 149.61

Φ2.5×50

2.5 50 250 0.62-1.86 55 187.37

Φ2.5×54

2.5 54 300 0.48-1.45 55 196.29

Φ2.7×42

2.7 42 350 0.10-1.52 55 198.5

Φ2.8×44

2.8 44 450 0.437-2.18 55 201.58

Φ3.0×45

3 45 500 0.5-2.47 75 210.94

Φ3.0×48

3 48 700 0.6-3.48 100 237

Φ3.0×60

3 60 800 0.3-2 100 310

Φ3.2×50

3.5 50 1000 0.6-3 125 278

Φ3.3×52

3.3 52 1300 0.266-2.66 125 283

Φ3.5×54

3.5 54 1500 0.55-3.4 220 363

Φ3.6×70

3.6 70 1800 0.25-1.25 125 419

Φ4.0×56

4 56 2300 0.41-4.07 315 456

Φ4.0×60

4 60 2500 0.396-3.96 315 510

Φ4.2×60

4.2 60 2750 0.41-4.07 375 633

Φ4.3×60

4.3 60 3200 0.396-3.96 375 583

Φ4.5×66

4.5 66 4000 0.41-4.1 560 710.4

Φ4.7×74

4.7 74 4500 0.35-4 630 849

Φ4.8×74

4.8 74 5000 0.396-3.96 630 899

Φ5.0×74

5 74 6000 0.35-4 710 944

Φ5.6×87

5.6 87 8000 Max4.23 800 1265

Φ6.0×95

6 95 10000 Max5 950×2 1659
